I recently took part in the Credit Risk Analytics Challenge, where the task was to build a dynamic financial risk dashboard using Power BI. Seeing the words “Risk” and “Analytics” in the title, I focused on modeling reality: building a system that could estimate default probabilities, simulate portfolio outcomes, and demonstrate the technical side of credit risk analytics.
In this article, I’ll walk through the ideas behind my approach, the models I built, and how I translated them into an interactive dashboard.
I chose R for data processing and modeling due to its efficient handling of statistical modeling for complex datasets with numerous categorical variables. Importantly, I created integrated R scripts that were directly deployed into Power BI report using Power Query with no external data processing — everything in one .pbix file which can run in the Power BI service as well.
Phase 1: Data Cleaning and Engineering
The project began with a Credit Risk Dataset composed of 32,581 rows and 29 columns, split between 12 character (categorical) and 17 numeric variables. My first step, documented in detail in the Exploratory Data Analysis of Credit Risk Dataset, was ensuring the data was pristine for modeling.
1. Variable Selection and Redundancy
I immediately excluded variables that lacked predictive utility or caused issues in regression models. I removed the simple identifier client_ID and the geographical coordinates (city_latitude and city_longitude).
A key part of cleaning involved addressing redundancy. A correlation check revealed that loan_percent_income and loan_to_income_ratio were nearly perfectly correlated (0.9989417). The decision was made to drop loan_percent_income to eliminate multicollinearity and simplify the feature set.
2. Handling Missing Data and Outliers
I identified missing values primarily in person_emp_length (97% complete) and loan_int_rate (90% complete). Since no obvious pattern of missingness was found, I employed a simple and robust imputation method: replacing all missing numeric values with the median of their respective columns.
Outlier handling required careful judgment. I found extreme values in person_age and person_emp_length that seemed like data entry errors (e.g., ages greater than 100).
My logic was to replace these anomalies with the median to normalize the distributions without losing valid information. However, extreme values in other_debt and person_income were retained, as they were judged to be genuine observations.
Phase 2: Building and Optimizing Predictive Models
The core task was to predict the loan_status variable, where 1 signifies default and 0 signifies no default. I explored multiple models, prioritizing predictive power (AUC) and, for deployment, interpretability (Marginal Effects for the dashboard). The process is described in detail in Building Predictive Models for Credit Risk.
1. Logistic Regression (GLM) for Interpretability
I initially built a Logistic Regression model (GLM), which provides easily interpretable coefficient estimates. Due to the nature of the model and to avoid singularity issues, I excluded loan_grade and loan_int_rate (as they are likely set by the bank based on pre-assessment).
For categorical features with high cardinality, such as city and country, I used one-hot encoding. I then employed stepwise selection (MASS::stepAIC), an optimization technique that systematically adds or removes variables to minimize the model’s AIC (Akaike Information Criterion), yielding a balance between fit and simplicity.
However, when reviewing the stepwise results, I ensured that if a categorical variable (like person_home_ownership) was implicitly selected via one of its encoded levels (like person_home_ownershipRENT), all levels were included in the final model to maintain structural integrity. The final GLM model using only selected, significant variables (person_home_ownership, person_emp_length, loan_intent, loan_amnt, loan_to_income_ratio, cb_person_default_on_file) showed strong performance, achieving a Cross-Validated ROC (AUC) of 0.809076.
The diagnostics also confirmed that the model was well-behaved, with a dispersion parameter less than 1, indicating no overdispersion.
2. Advanced Modeling: Random Forest and XGBoost
To benchmark and potentially surpass the GLM performance, I implemented a Random Forest model. Since Random Forests can handle correlated features well, I initially trained this model on the full dataset (excluding only the two variables noted above).
The initial Random Forest model achieved an AUC of 0.8519. Using the variable importance metrics (Mean Decrease Accuracy and Mean Decrease Gini), I identified features contributing little to predictive power, such as gender, marital_status, and education_level. After dropping these weak predictors, the simplified Random Forest model improved performance, reaching an AUC of 0.861.
Finally, I tested XGBoost (Extreme Gradient Boosting), a powerful ensemble technique known for maximizing accuracy. After converting categorical variables to numeric matrices (a necessary step for XGBoost), this model delivered the best result: an AUC of 0.8963. XGBoost’s feature importance analysis indicated that loan_to_income_ratio and person_income were the most influential predictors, followed by person_home_ownership.
The superior performance of XGBoost led me to select it as the engine for the portfolio simulation component of the dashboard, while the GLM was retained for the interpretable marginal effects calculations.
Phase 3: Operationalizing Models via Power Query R Scripts
A critical technical challenge was integrating these analytical processes so the dashboard could update dynamically. I created R scripts to be embedded directly into Power Query, documented in Scripts for Power Query and Synthetic Data For Simulations.
1. Calculating Marginal Effects
For the Default Risk Calculator section of the dashboard, I needed to show how a change in an individual factor affects the probability of default (PD). For this, I used the interpretable Logistic Regression model.
The script calculates Average Marginal Effects (AMEs) for standardized (to compare effects) and raw values (for PD calculation). The logic behind AMEs is that they estimate the change in the probability of default (\(P\)) associated with a unit change in a predictor variable (\(x_j\)), calculated as \(\beta_j \cdot p \cdot (1-p)\), where \(p\) is the average predicted probability. This output helps users understand the true impact of each driver, not just the raw logistic coefficient (\(\beta_j\)).
The GLM used for this analysis achieved a Recall of 0.9572 and a Precision of 0.8494.
2. Generating Synthetic Data for Simulation
To implement the Portfolio Simulation feature, I needed a massive, realistic dataset capable of reflecting various scenarios. I generated 50,000 synthetic borrowers.
The generation process involved sampling the original data while ensuring that the proportions of categorical features, such as loan_intent and person_home_ownership, were preserved. To simulate realistic diversity, I added jitter (random noise) to numeric features like person_age and loan_amnt. Finally, I applied the pre-trained on the original data XGBoost model to these 50,000 synthetic records to predict a Predicted_PD for each one. This synthetic dataset was also enhanced with categorization bins (e.g., age_bin, income_bin) to enable interactive slicing and scenario testing within the dashboard.
Phase 4: Building Power BI Report
1. Power Query Integration

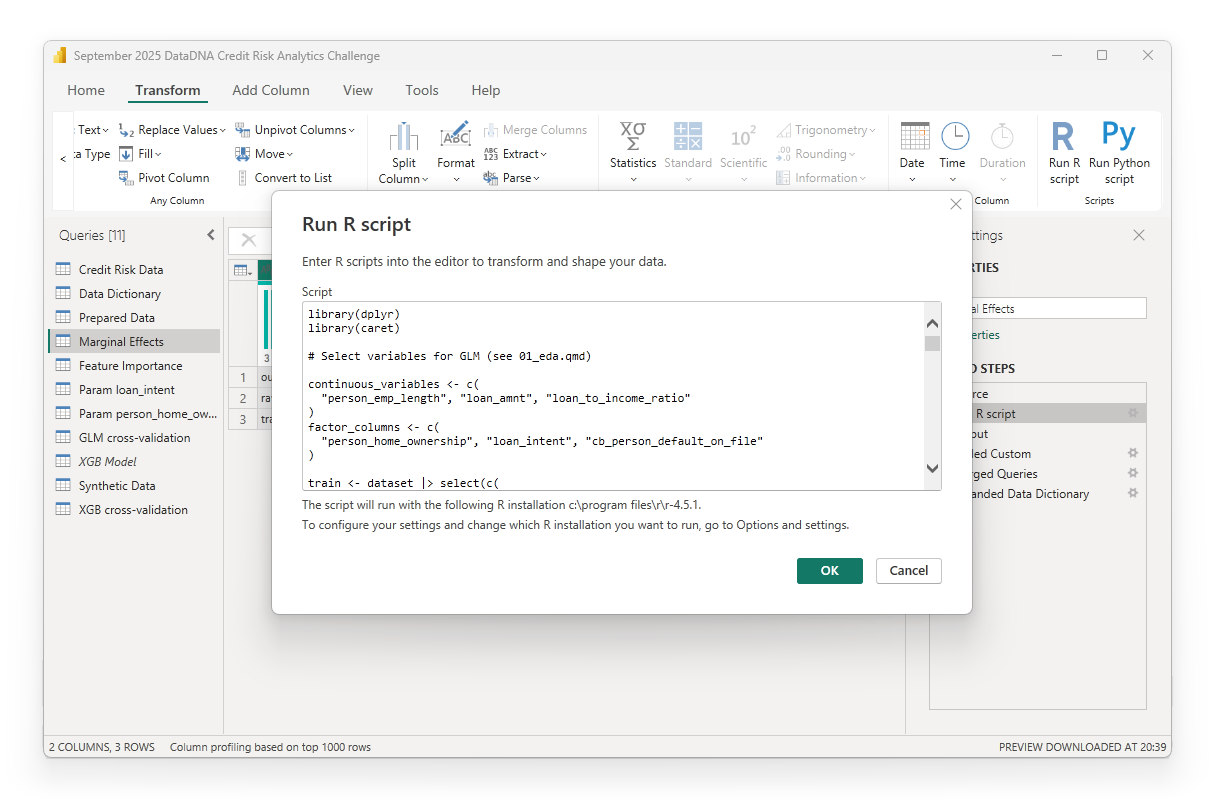

There are two ways to run R scripts in Power BI: through the R visual or via Power Query. The R visuals are mainly for creating plots and have multiple limitations. Power Query is more versatile as it runs to preprocess data before loading it into the report.
2. Dashboard Design
The Power Query R scripts only run when the data is refreshed, making it impossible to adjust parameters interactively. As soon as I couldn’t utilize advanced models such as Gradient Boosting for interactive calculations, in the Default Risk Calculator I used coefficients from GLM model trained on the non-standardized data, and converted the sum of the products to a predicted probability of default by applying the inverse-logit function \(1/(1 + \exp(-(\beta_0 + \beta_1x_1 +...+\beta_kx_k)))\) in the DAX measure.
In the Portfolio Simulation there was no need to interactively calculate PDs, so I created DAX measures and slicers which filter the pre-calculated synthetic dataset, effectively allowing users to simulate different portfolio compositions and see the impact on overall default rates and losses. The underlying XGBoost model metrics demonstrated exceptional classification ability, with a Sensitivity of 0.9831 and a Specificity of 0.7012.
The final dashboard was structured into three main sections:

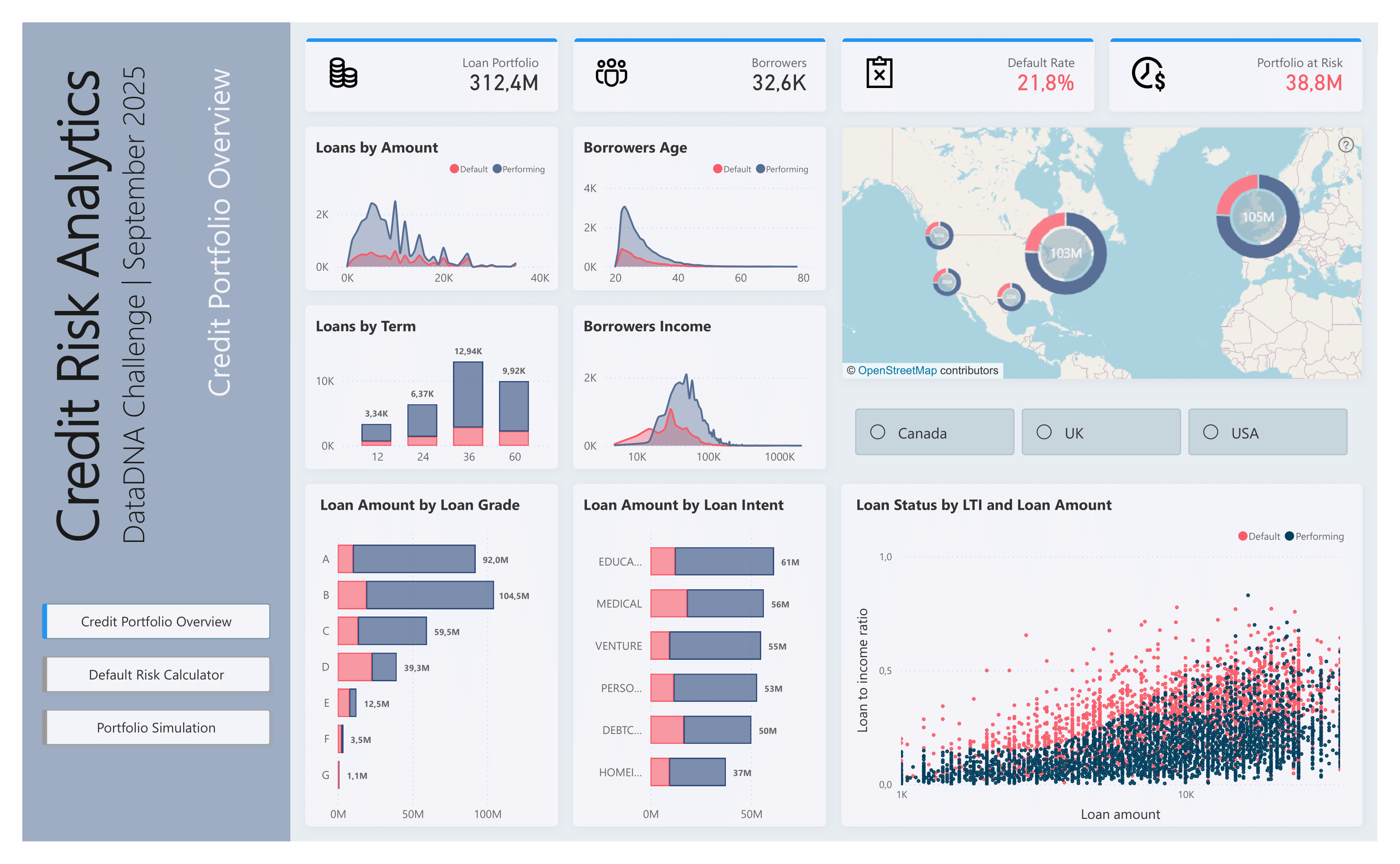

Portfolio Overview: key statistics such as total borrowers, portfolio value, and overall default rate. The users can use cross-filtering to explore how different segments (e.g., by loan intent) perform.

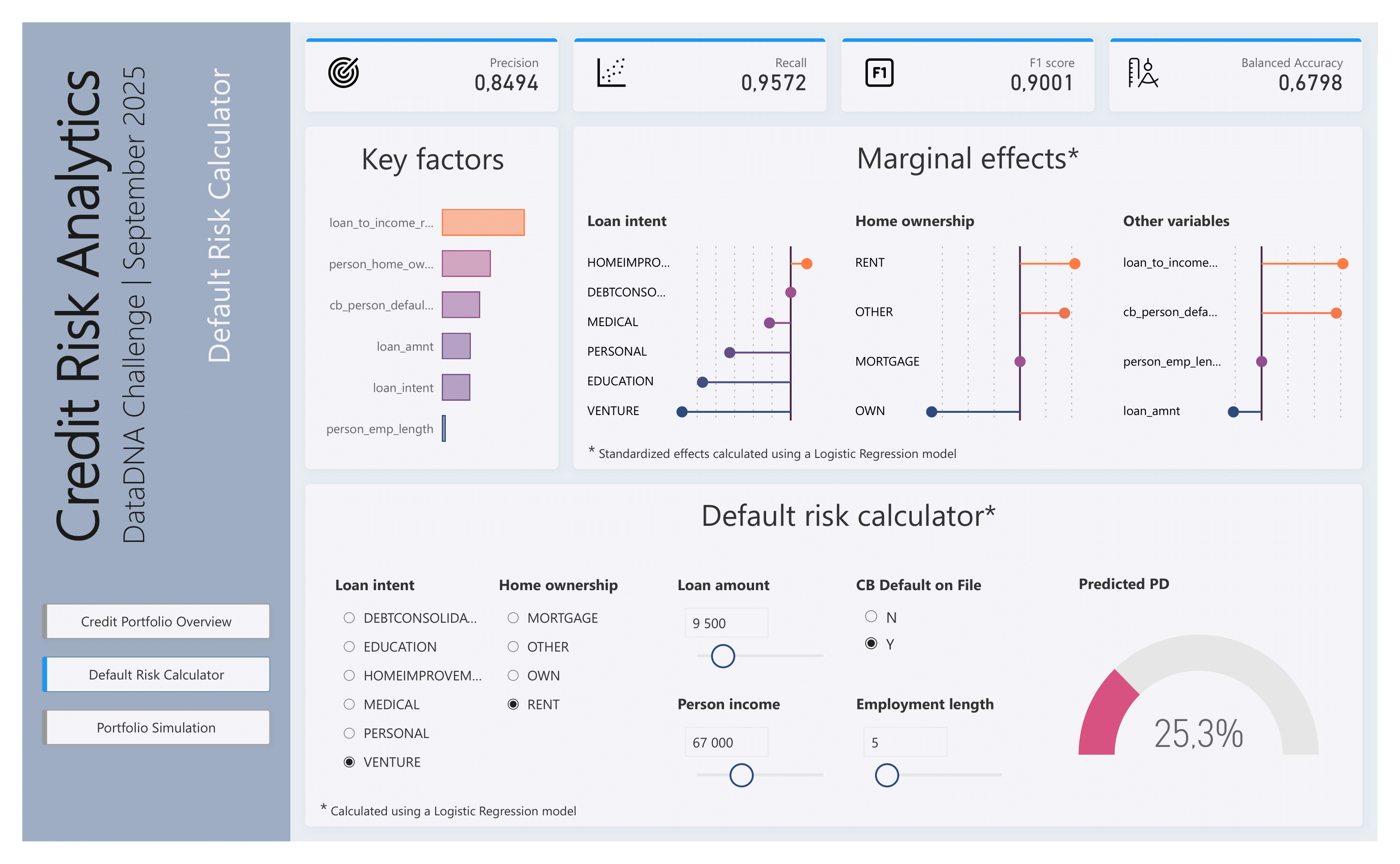

Default Risk Calculator: an interactive tool allowing users to input borrower characteristics and see the predicted probability of default along with marginal effects for each factor.

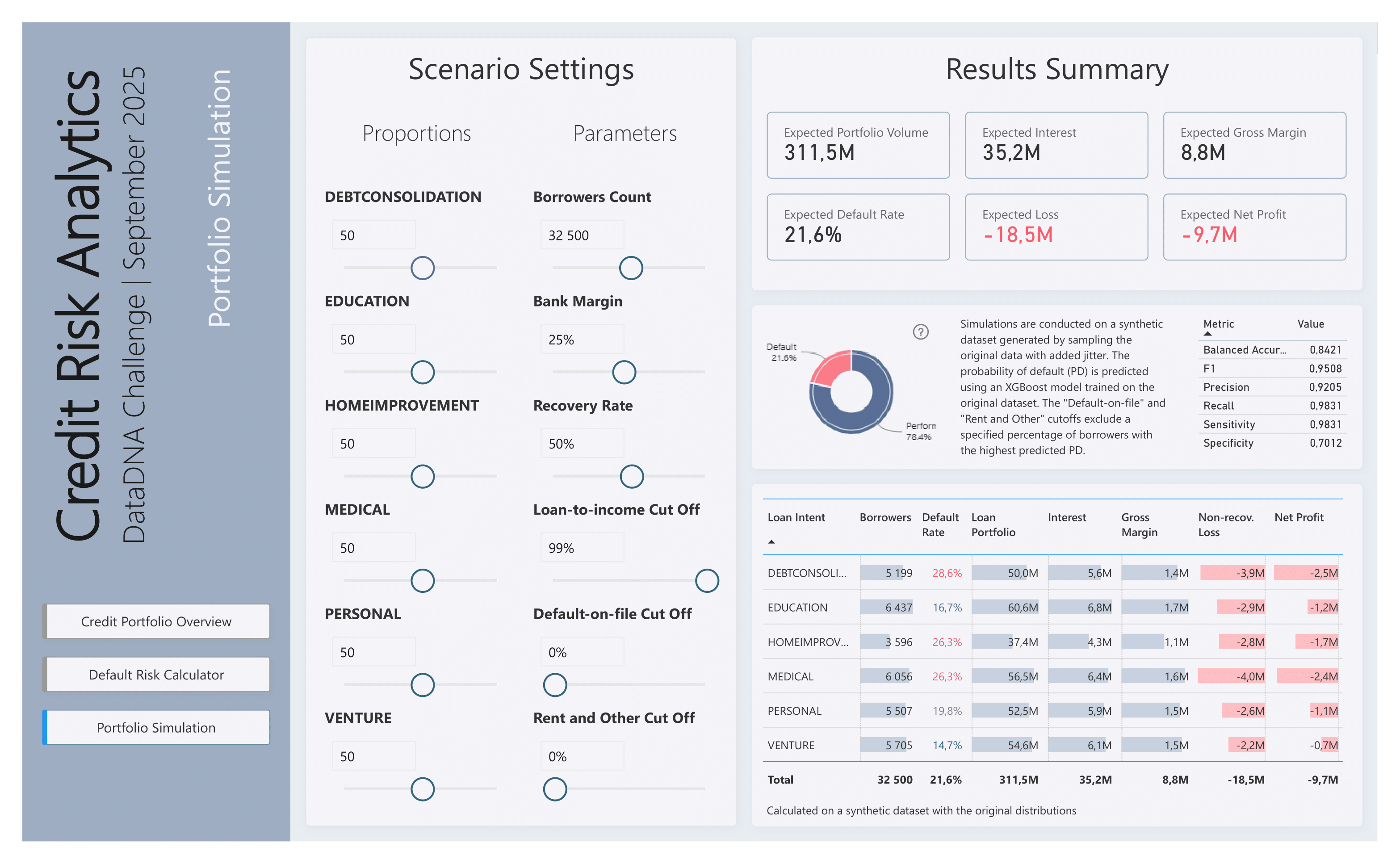

Portfolio Simulation: a scenario analysis tool where users can modify variables, such as the proportions of loans by intent or thresholds based on borrower data like loan-to-income (LTI) ratio, to observe the projected effects on portfolio default rates, losses, and profits.
Conclusion
This project was a comprehensive exercise in data science, statistical modeling, and business intelligence. By employing R for data processing and modeling, and Power BI for reporting, I created a powerful tool for credit risk analysis.
Key Features
All data processing and modeling are done within Power BI using embedded R scripts, ensuring a single, portable .pbix file.
The Default Risk Calculator uses a Logistic Regression model for interpretability, allowing users to understand the impact of various factors on default probability.
The Portfolio Simulation utilizes a high-performing XGBoost model to provide realistic scenario analysis based on synthetic data.
References
September 2025 DataDNA - Credit Risk Analytics Challenge - Onyx Data — challenge web-page.
DataDNA Challenge Credit Risk Analytics September 2025 — GitHub repository.
